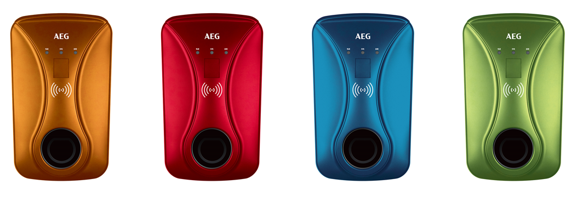

Poros Legend
Poros Legend chargers feature simple product design, diverse customization and beautiful appearance. Modular design facilitates product update and upgrade.
Legend chargers are AC wall-mounted and vertically installed. They are fully
waterproof and dustproof, and is suitable for all-weather indoor and outdoor scenarios.
Legend AC charger can provide electric energy for electric vehicles with on-board chargers, and can provide products that comply with GB18487.1/2 and IEC61851. This charger provides charging power 7kw or 22kw (optional), and is suitable for 1-phase AC220-230V and three-phase AC380-440V power systems. Legend series supports 4G/wifi communication, and provides intelligent control, multiple protection, charging exception alert and other functions to ensure charging safety.
| Description | Poros Legend-E1 | Poros Legend-E2 | Poros Legend-E3 | |
| Input | voltage | Single-phase 220VAC | Three-phase 400VAC | |
| Current | Single-phase 32A | Three-phase 16A | Three-phase 32A | |
| Power frequency | 50Hz | |||
| Input connector | Hardwired | |||
| Output | Output voltage | Single-phase 220VAC | Three-phase 400VAC | |
| Current | Single-phase 32A | Three-phase 16A | Three-phase 32A | |
| Rated power | 7kW | 11kW | 22kW | |
| Output connector | Type 2 | |||
| Features & Functions | Material | PC | ||
| Cable length | 5m | |||
| Communication | Communication | 4G/Wifi/Ethernet standard optional | ||
| User authentication | RFID、APP optional | |||
| Backed protocol | OCPP 1.6 | |||
| Safety | RCD | 30mA AC+6mA DC | ||
| Safety protection | Over Curent Protection、Over/Under Voltage Protection、Over Temperature Protection、Surge Protection、Short-Circuit Protection、Leakage Protection、Ground Protection | |||
| General Design | IP | IP54 | ||
| Working temperature | ≤95%RH，Without condensation | |||
| Working humanity | ＜2000m | |||
